Here you will find an overview of our product groups as well as the corresponding catalogs.


All product groups can be individually adapted to your requirements. This includes easily adaptable features such as reinforced output shafts, speeds/voltages or a design for extreme values. (Acceleration, weight, efficiency, installation space, costs, etc..)





Servomotor mit Vergrabenen Magneten; IPM -Servomotor; Motor mit hohem LD/LQ

Power-Line

Permanent magnet synchronous motors - also servo motors, PM machines, IPM motors, PM motors - are manufactured by us almost exclusively with buried magnets. I.e.: the magnets are slid into sheet metal rotors with corresponding recesses. This causes besides the mechanical stability, positive effects with the losses and improves the controllability by a large Ld/Lq - ratio. (=important when starting with encoderless controllers).



The motors are available as frameless servo (only the active part stator+rotor) or convection-cooled IC410, forced-ventilated IC416, water-cooled ICW.

Catalogue: Power-Line

Servomotor mit Vergrabenen Magneten; IPM -Servomotor; Motor mit hohem LD/LQ

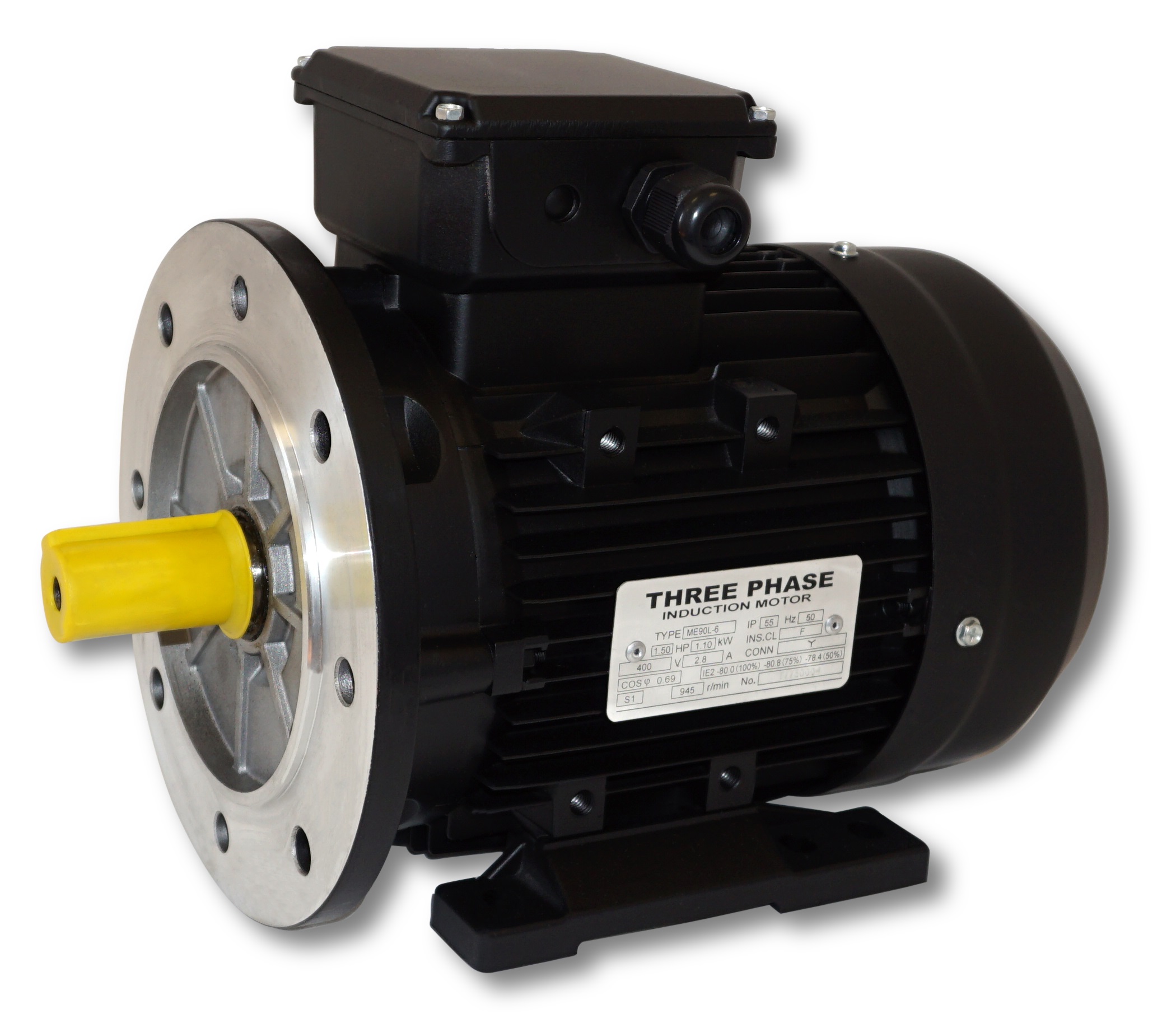

IEC-Line

In order to be able to offer cost-effective, highly efficient, lightweight motors that can also be flange-mounted on standard gearboxes, bellhousings, etc., we have introduced our IEC line. Especially in the low power range, this line has unbelievably high efficiencies. IE4 in all power classes. In addition, these motors are on average 2 sizes smaller than standard motors, which allows much more compact and lighter designs. A small sensation!

Catalogue: IEC-Line



Servomotor mit Vergrabenen Magneten; IPM -Servomotor; Motor mit hohem LD/LQ



Torque-Line External Rotor

Specially designed for low speeds and excellent controllability. Designed as traction drives, but of course also excellently suited for industrial applications. Due to the mechanical variety, the catalog shows only the installation variant.

Catalogue: AL-Line













The catalogs are mainly for a rough selection/design. More details will be determined during a personal conversation.





Servomotor mit Vergrabenen Magneten; IPM -Torque-Motor; Motor mit hohem LD/LQ

Torque-Line Internal Rotor

Specially designed for low speeds and excellent controllability. Designed as traction drives, but of course also excellently suited for industrial applications. Due to the mechanical variety, the catalog shows only the installation variant.

Catalogue: IL-Line



ASYNC-Line

Asynchronous motors with servo look. These motors are heavier, larger, less dynamic than the PM servo motors. It can make sense under special conditions (e.g. requirement for high field weakening range and extremely precise speed stability). Variants: convection-cooled IC410, forced-ventilated IC416, water-cooled ICW.

Catalogue: Async-Line





BLDC Motors

Our BLDC line is specially designed for battery-powered applications. Variants: convection-cooled IC410, forced-ventilated IC416, water-cooled ICW.

Catalogue: BLDC-Line



TUBE-Line

Linear oscillating motors are designed for high stroke rates, also called servo tubes. An unbelievable example for the performance of these motors: 120mm stroke, 750 x per minute and max. 18kW output power. And this over months/years without service. At the same time a maximum position deviation of 11ym.

Catalogue: Tube-Line
